10/2019
Used
Sell

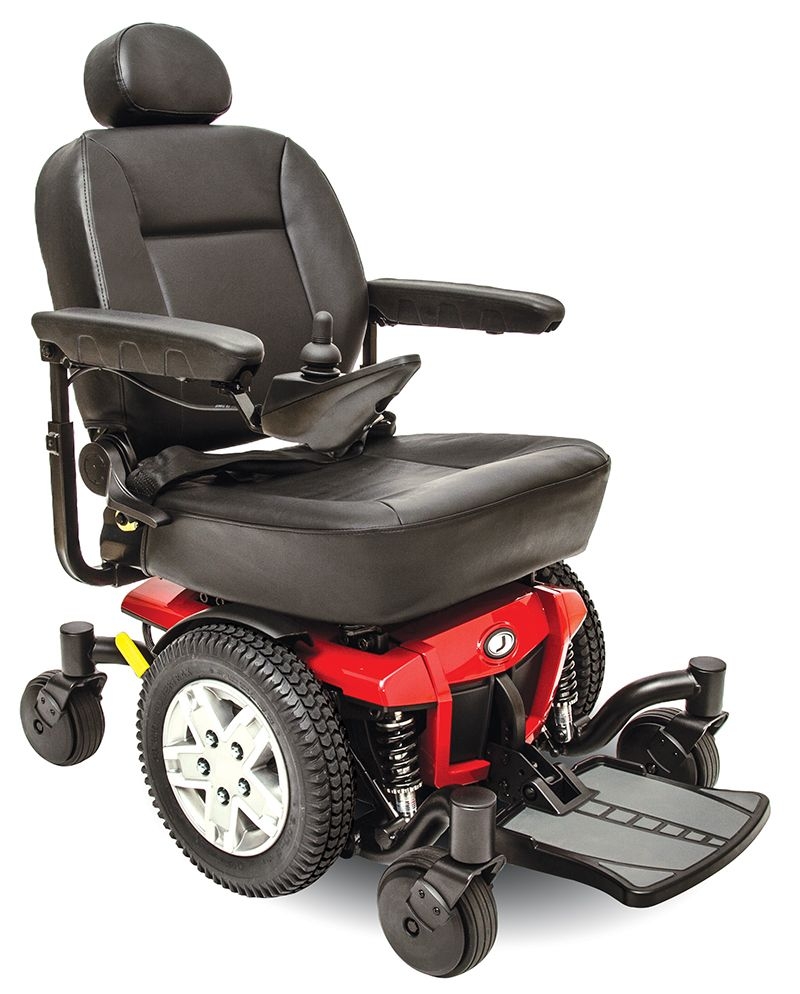

FDA Class II Medical Device. Lightly used Jazzy 600ES. Only used a handful of times. Charger included. Purchaser must be able to pick the item up from the Milwaukee area (no delivery). Cash, check or Venmo accepted. Original price $3500, asking for $800.
Model | Jazzy 600 ES |
Weight Capacity | 300 lbs. |
Maximum Speed | Up to 4 mph |
Ground Clearance | 2.75” |
Turning Radius | 20.5” |
Overall Length | 35.5” |
Overall Width | 24.5” |
Drive Wheels | 14” |
Front Wheels | 6” solid OMNI-casters |
Rear Wheels | 6” solid OMNI-casters |
Suspension | Active-Trac ® (ATX) |
Drivetrain | Two-motor, in-line, front-wheel drive |
Braking System | Regenerative and, electro-mechanical |
Standard Electronics | 50A, Dynamic Shark controller |
Battery Charger | Off-board, 5 amp |
Per-Charge Range | Up to 17 miles |
Battery Requirements | (2) 12 volt, deep cycle, U-1 |
Battery Weight Base Weight Standard Seat Weight |
25 lbs. each 124 lbs. 52 lbs. (high-back) |
Standard Seat | 18” x 18-20” and 20” x 18-20” |
Max. Seat Dimensions | 20” x 20” |
