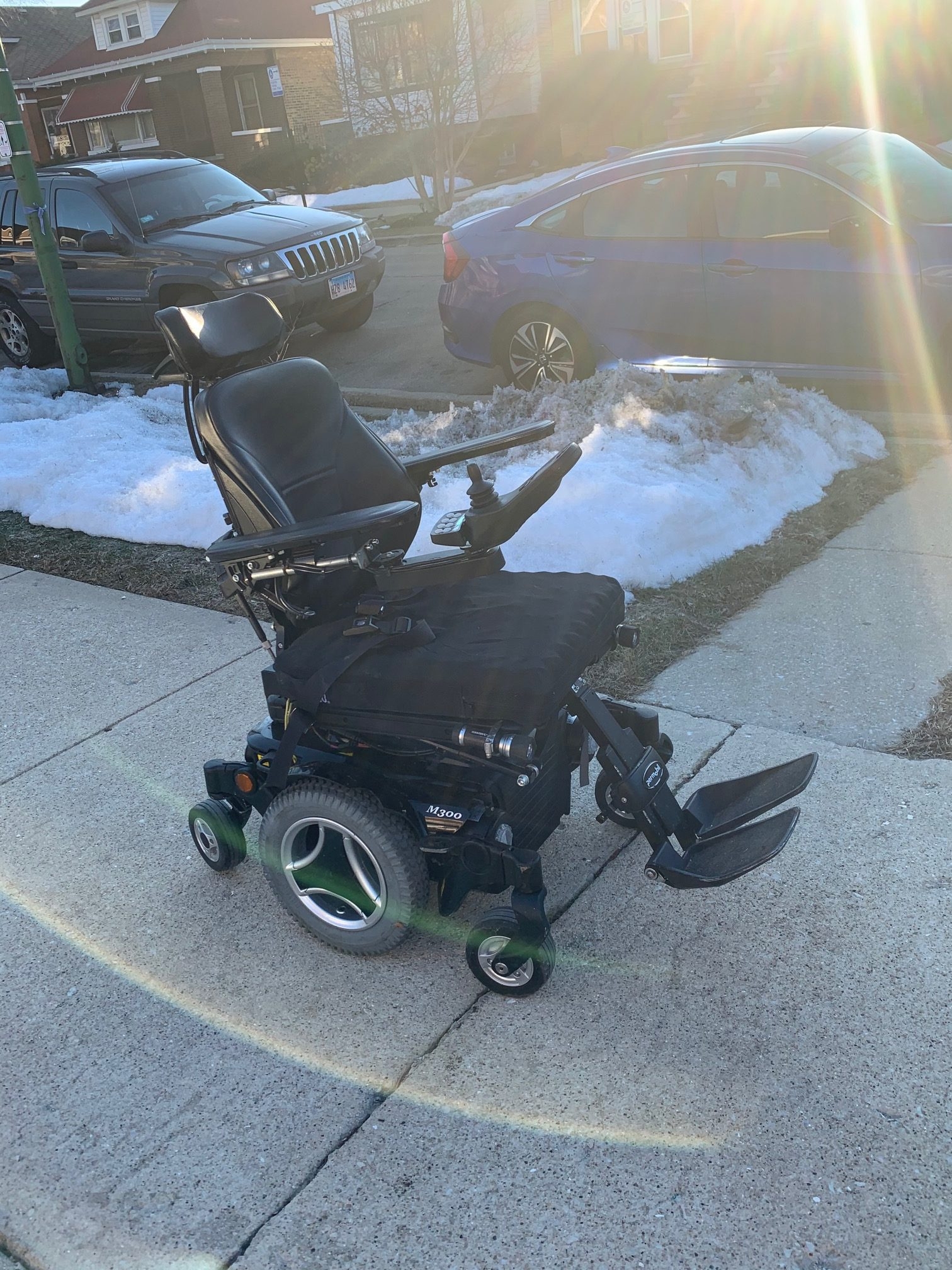

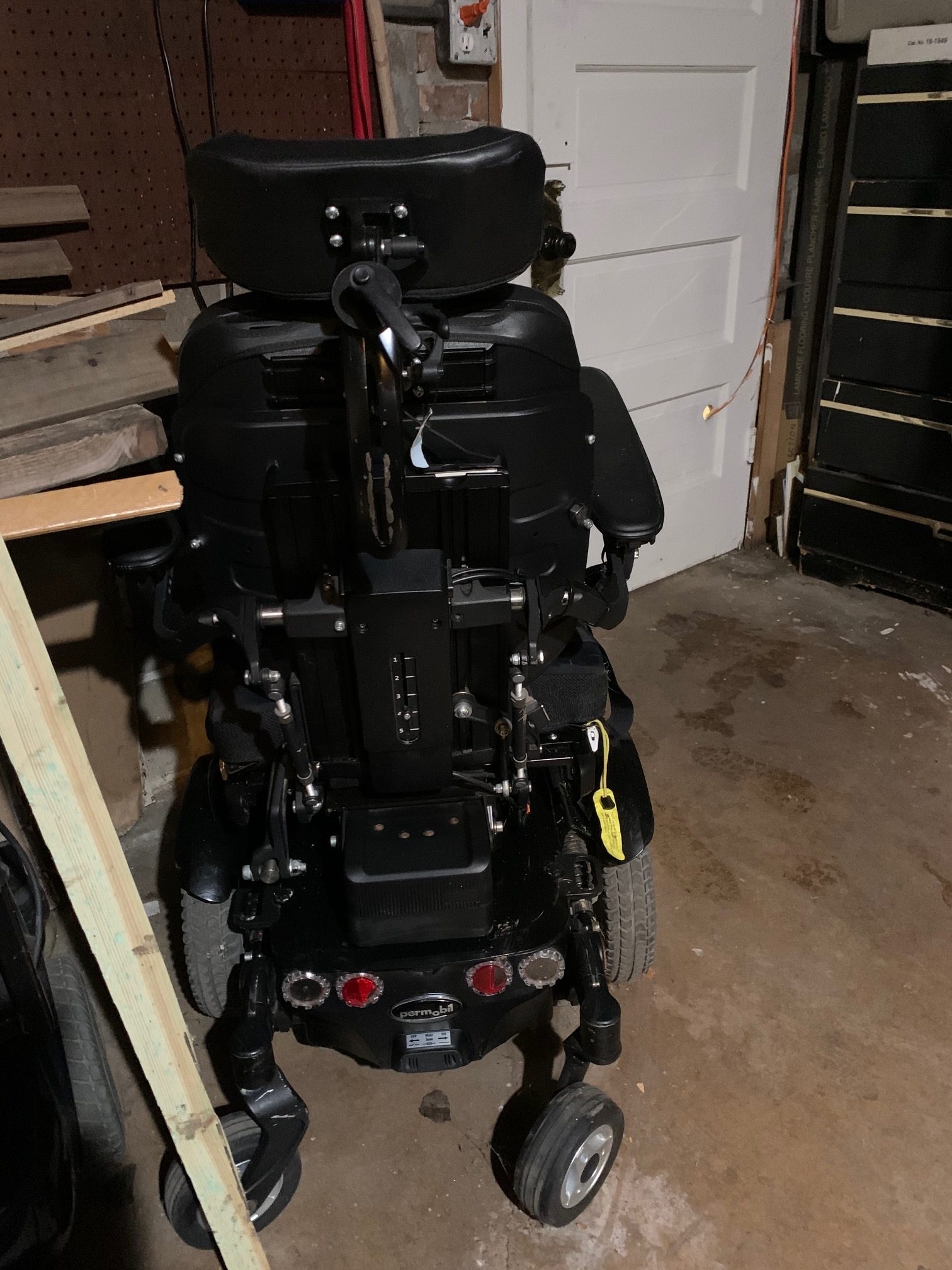

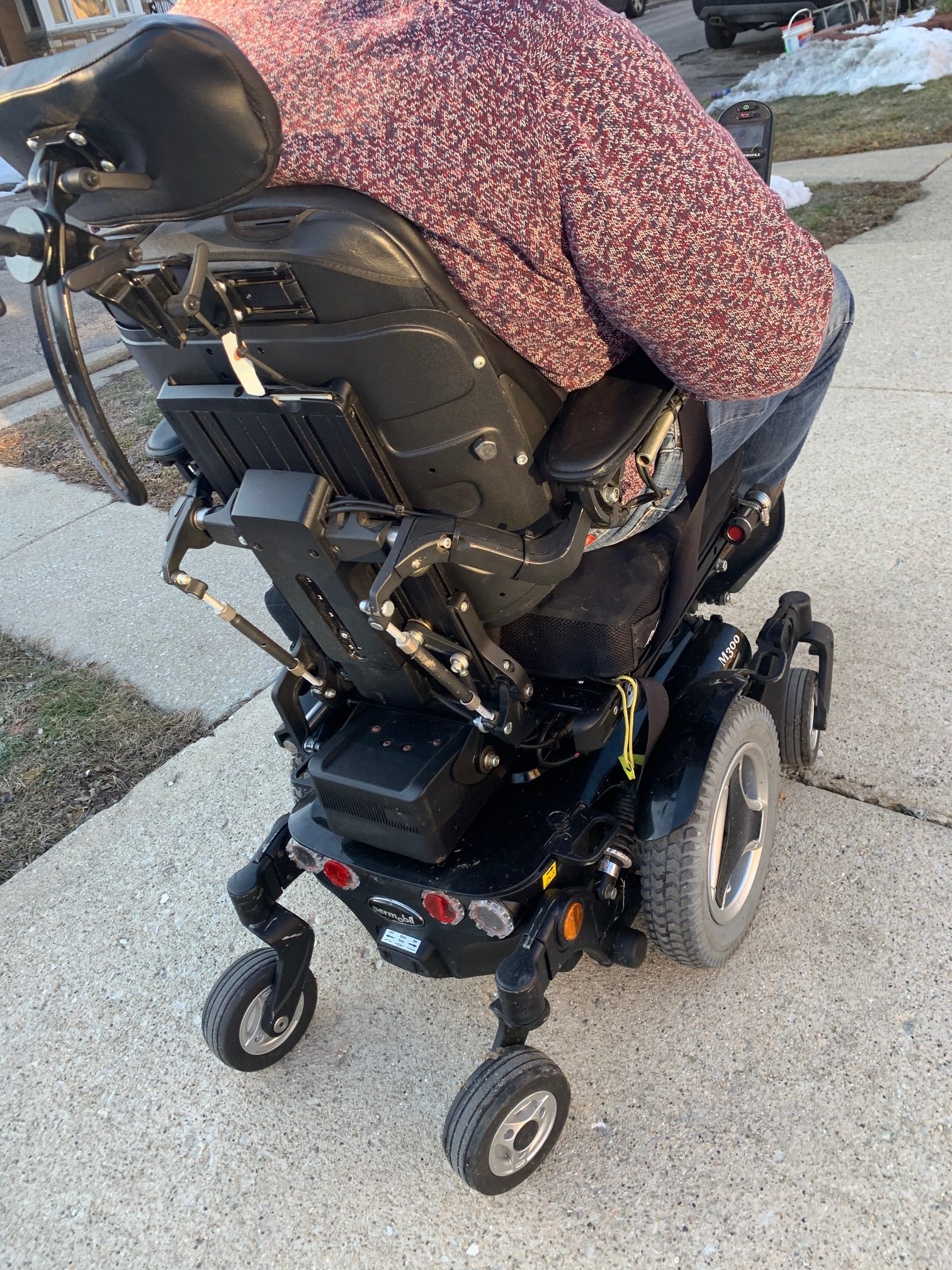

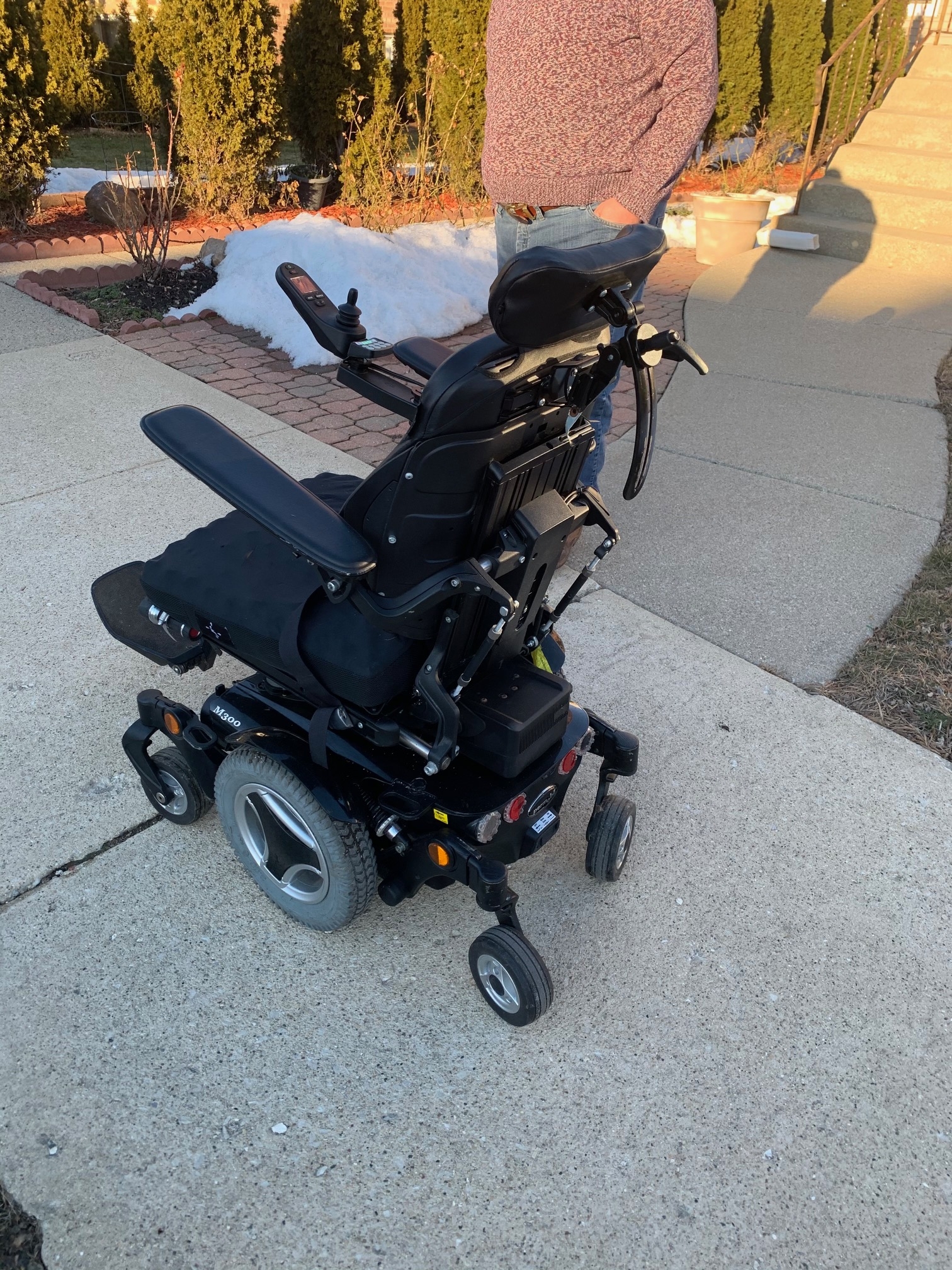

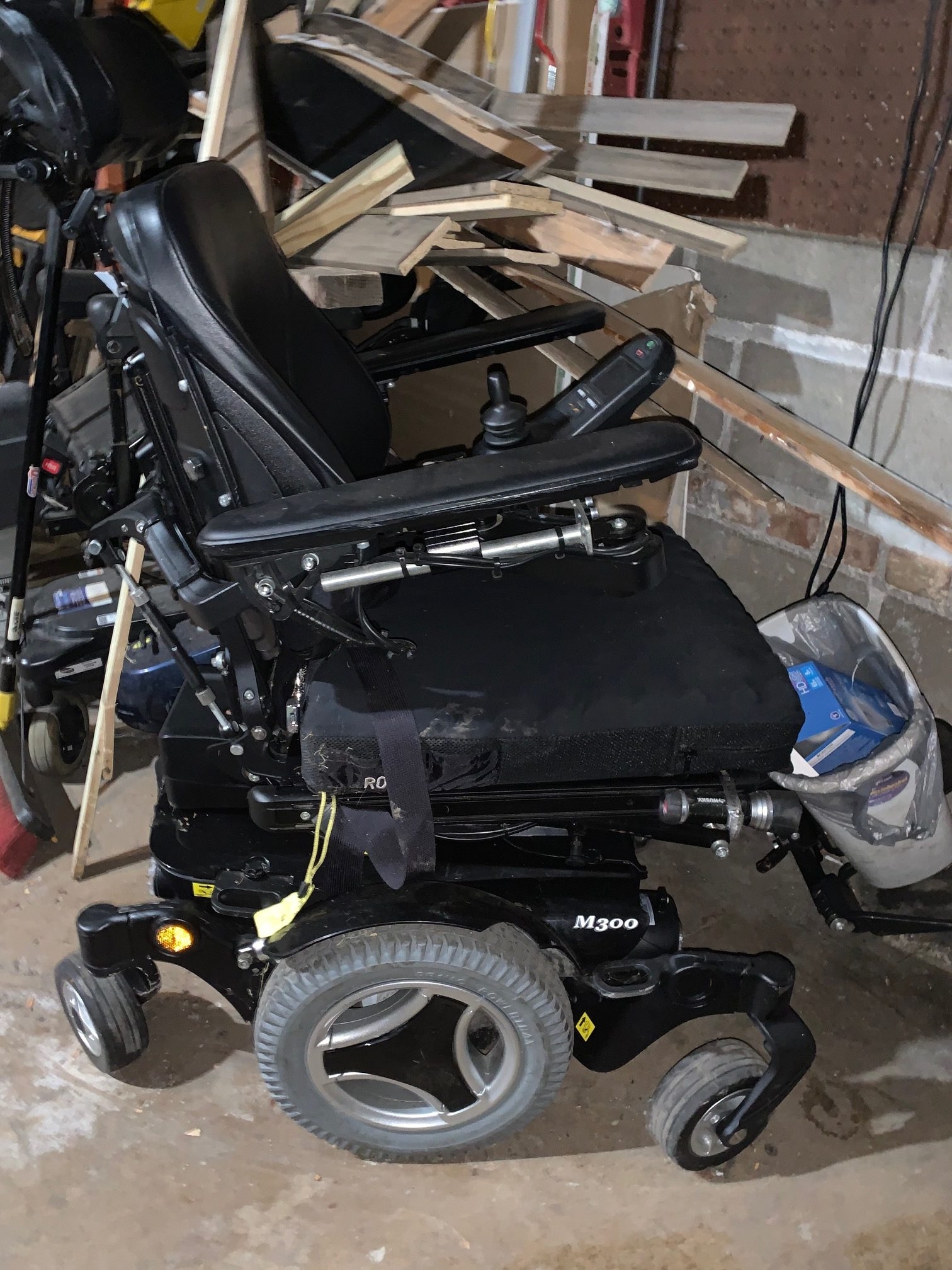

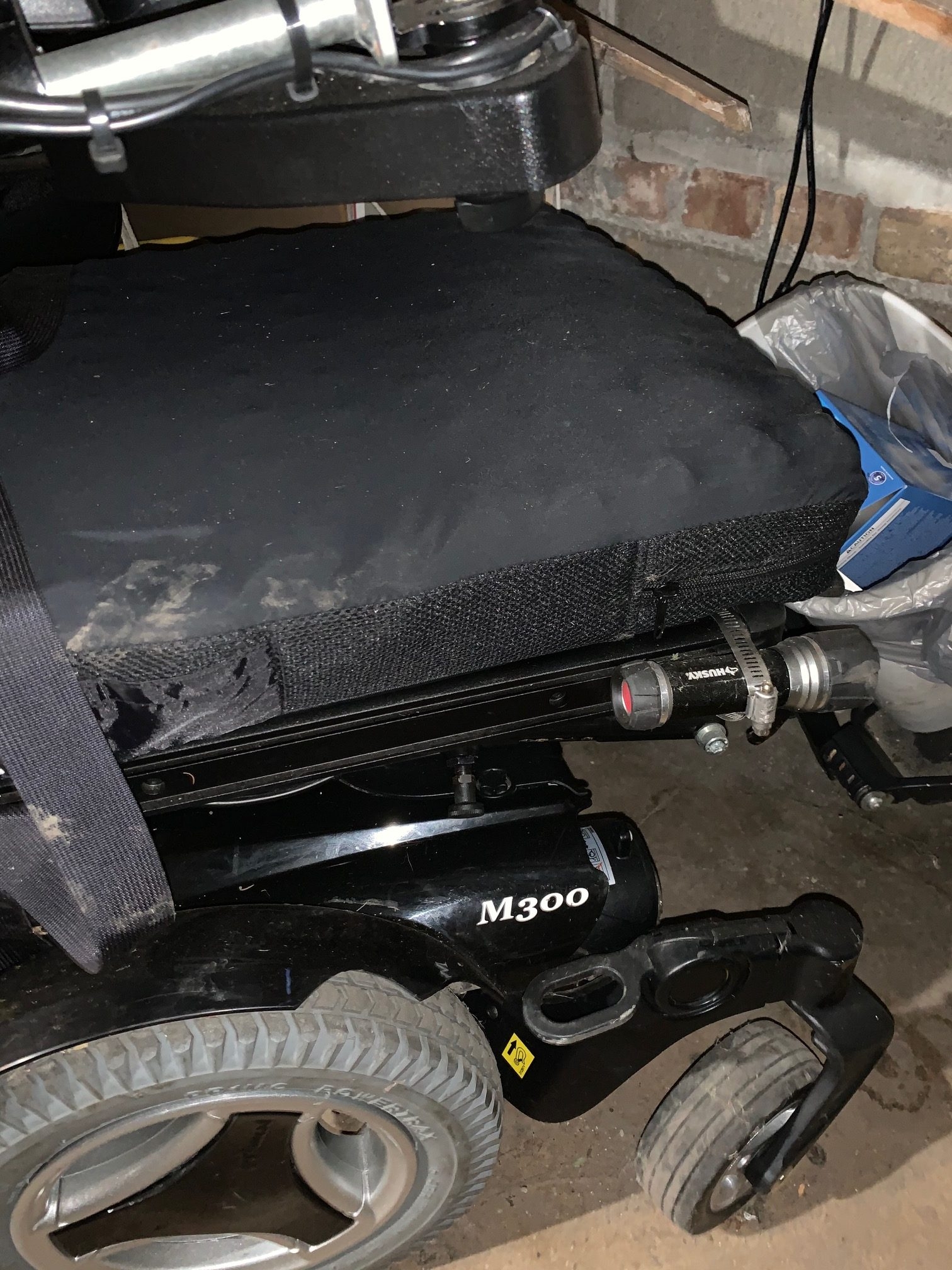

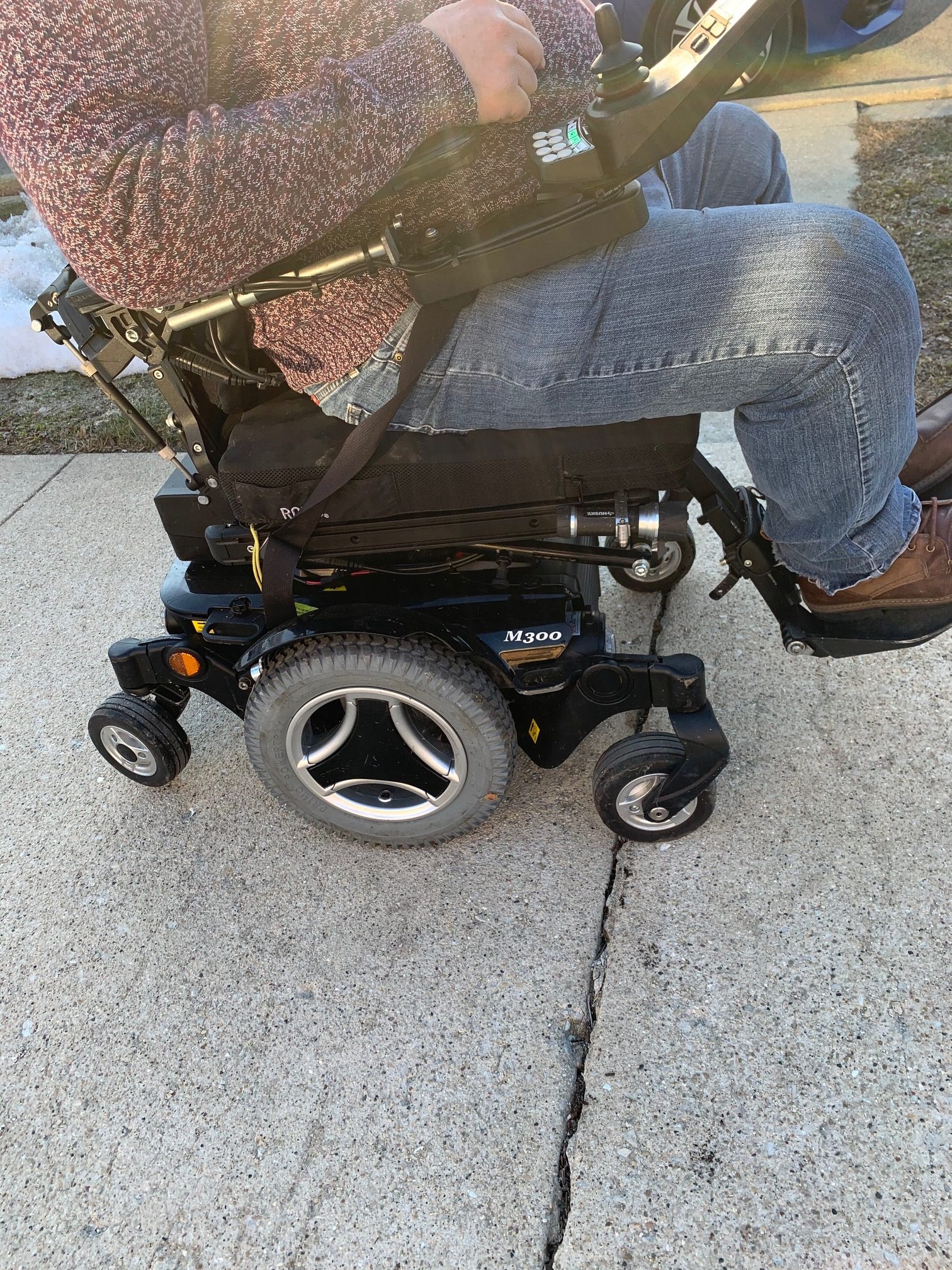

Used Permobil M300 in good condition. Has a few scratches. All features working properly. Battery charger included. It runs up to 7 miles per hour. My brother used it to be able to go up ramps for transportation for the city's PACE system. It's strong enough to navigate city streets, even in inclement weather. It operates with a joy stick with minimal effort and simplicity of use. It was used for a couple of years by my brother to travel to dialysis and stores.
Design & Function
General
The Permobil M300 is an electric mid-wheel drive wheelchair for outdoor and
indoor driving. It is intended for people with physical disabilities.

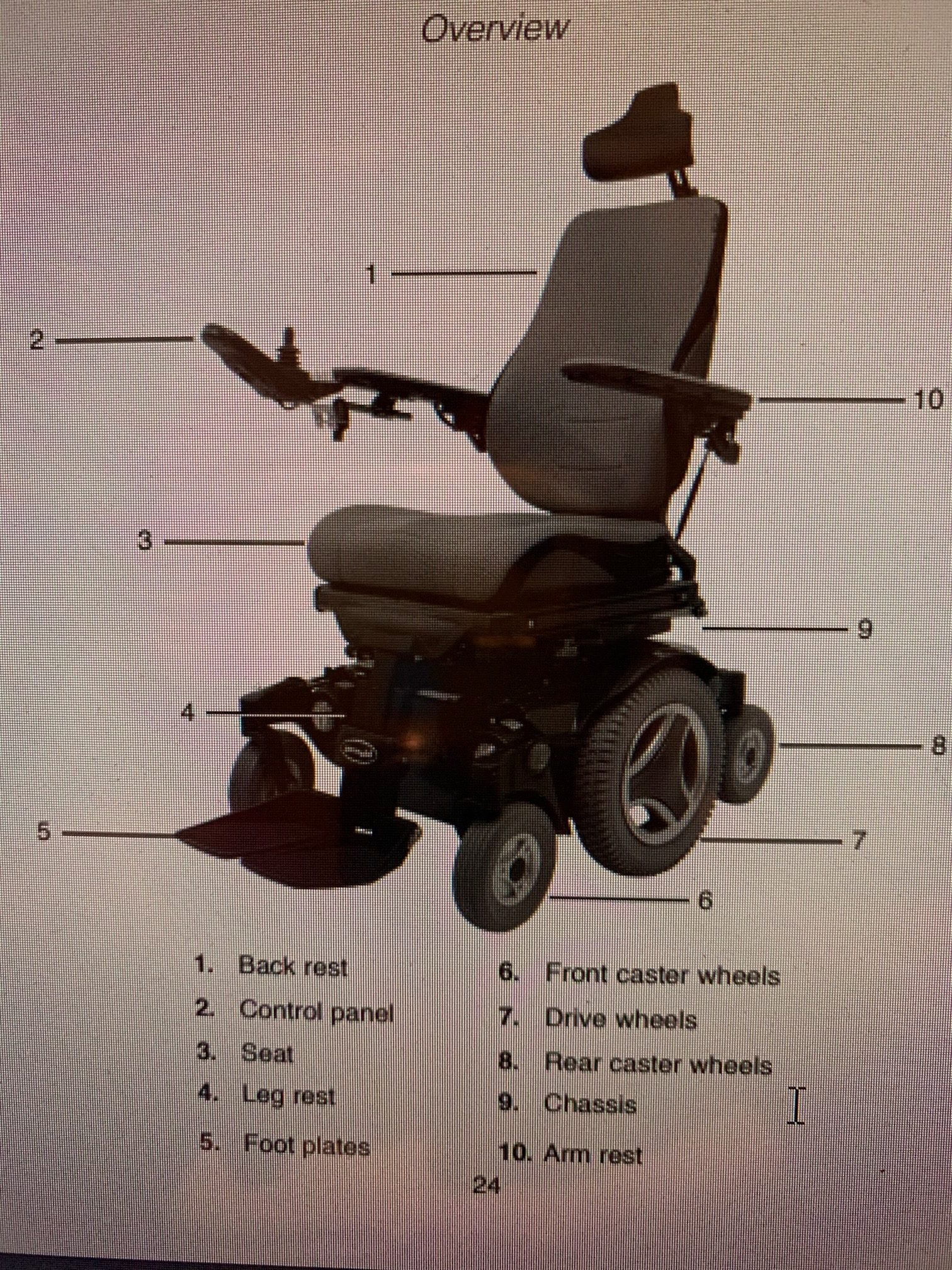

The wheelchair consists of a chassis and a seat. The chassis contains the
wheelchair’s electronics, power supply and drive functions. The seat consists
of a seat frame, seat plate/back rest, arm rest/leg rest, seat lift/fixed seat tube
and any accessories/options such as a head rest, calf rest, chest support, etc.
In this owner´s manual, we have chosen to show the wheelchair with our Corpus
3G-seat. However, the operation of the chassis and most of its functions are the
same regardless of the seat model chosen.
Seat
Permobil M300 can be combined with different seat models, which are supplied

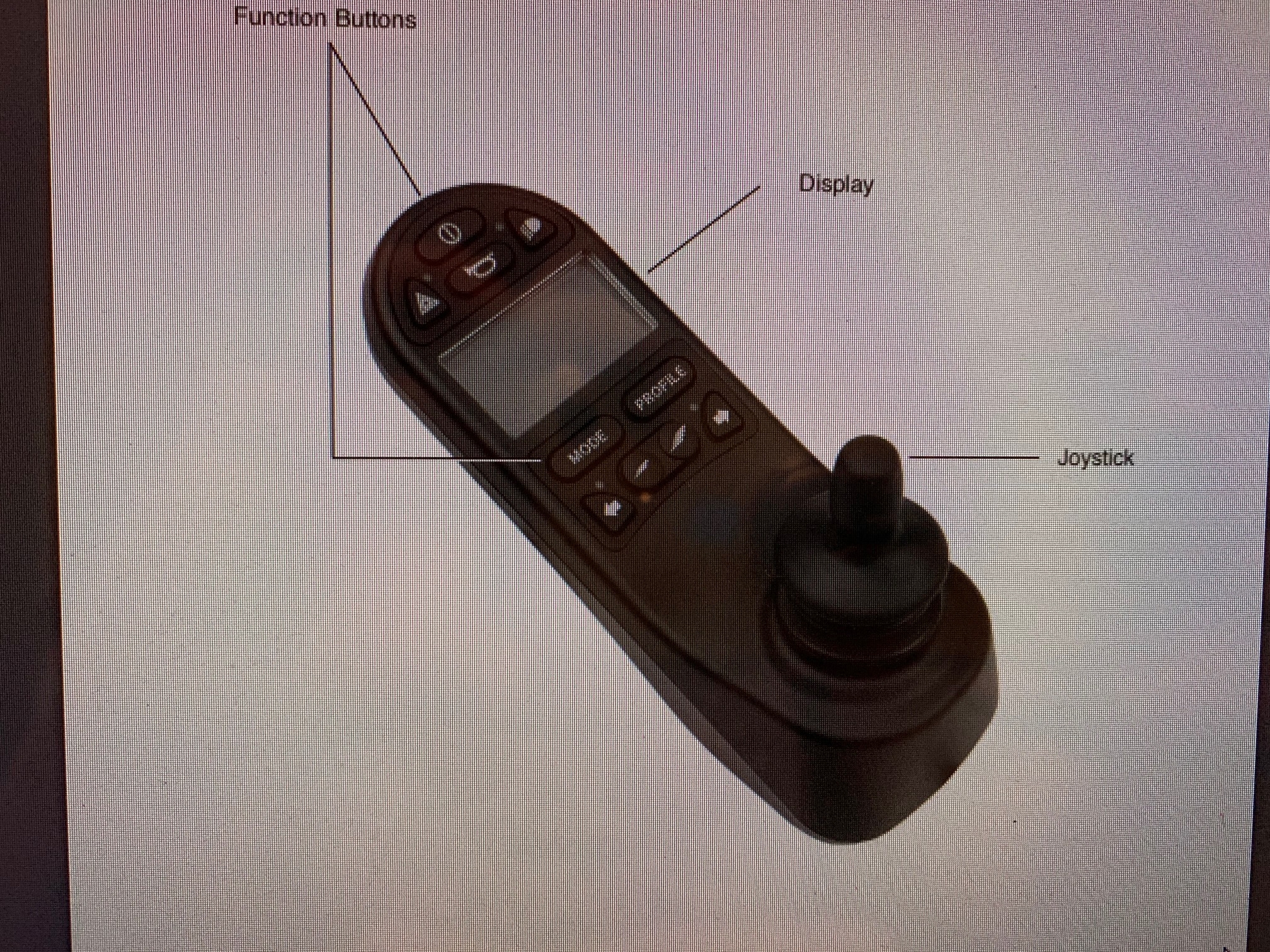

with a separate user manual. The seat’s electrical functions are operated using
the control panel or the seat’s ICS control panel (if your wheelchair is so equipped). For safety reasons, the seat’s electrical functions may in certain situations
restrict the usage of other seat functions or the wheelchair’s maximum speed. In
certain situations a seat function may even prevent the wheelchair from moving.

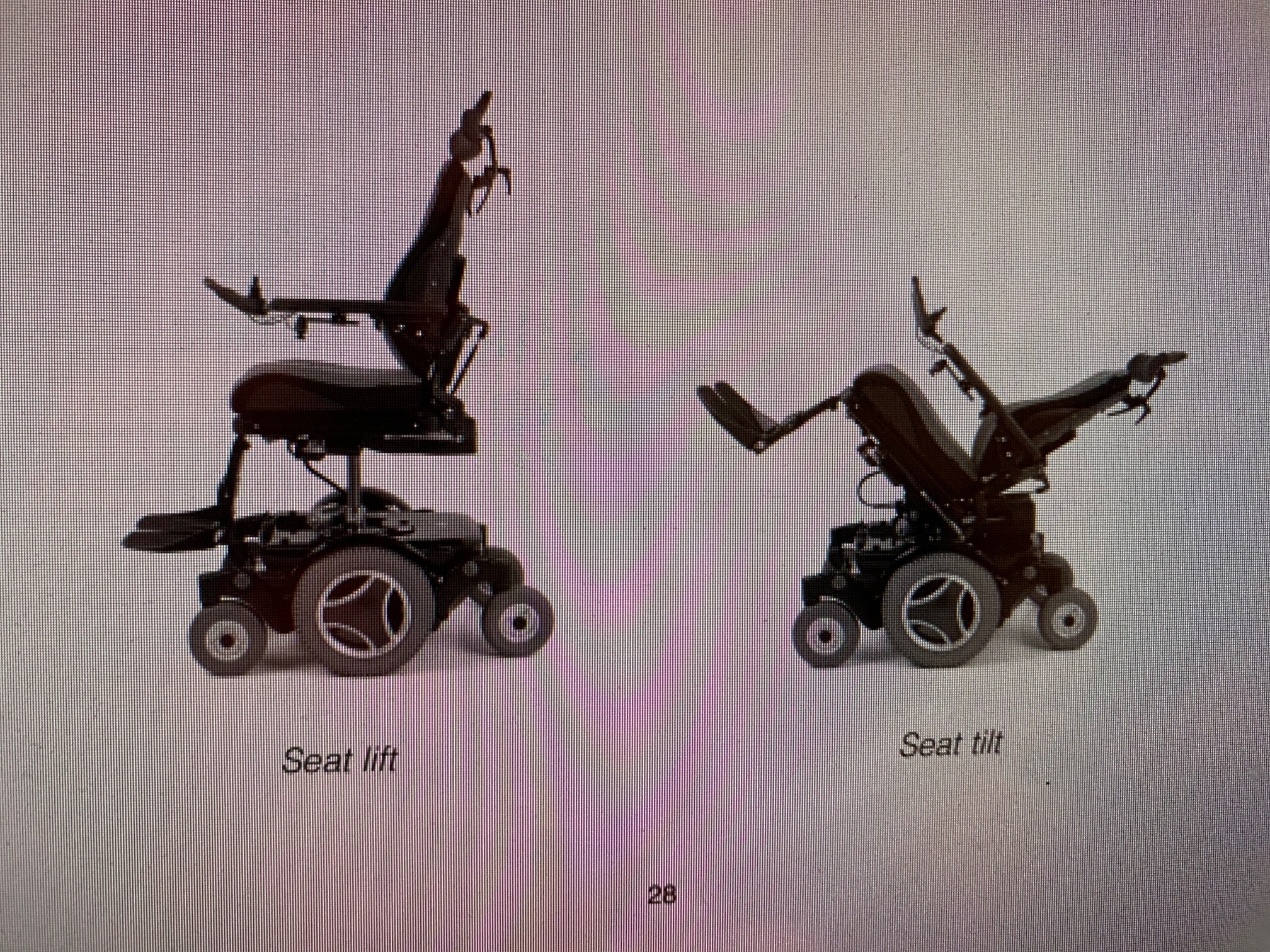

Seat lift
Permobil M300 can be fitted with an electrically controlled seat lift that allows the
seat to be raised steplessly up to 8 inches in order to adjust its height to tables,
benches, etc.
Seat angle
Permobil M300 can be fitted with an electrically controlled seat angle function
that makes it possible to adjust the seat angle steplessly up to 50°.
Circuit Breaker
The M300 is equipped with an automatic Circuit Breaker, which can be reset after
having been triggered. It also functions as a battery isolator and is controlled (ON/
OFF) via the lever located inside the hole at the bottom of the rear battery cover.
Charging socket
The charging socket is located on the control panel.
Batteries
The wheelchair’s batteries are located under the covers of the chassis. Both of
the batteries are easily accessible for maintenance and replacement.
Wheels
The wheelchair’s rear wheels, the drive wheels, are available with pneumatic
or Flat-Free (Foam Filled) tires. The front wheels, the caster wheels, have solid
polyurethane tires.

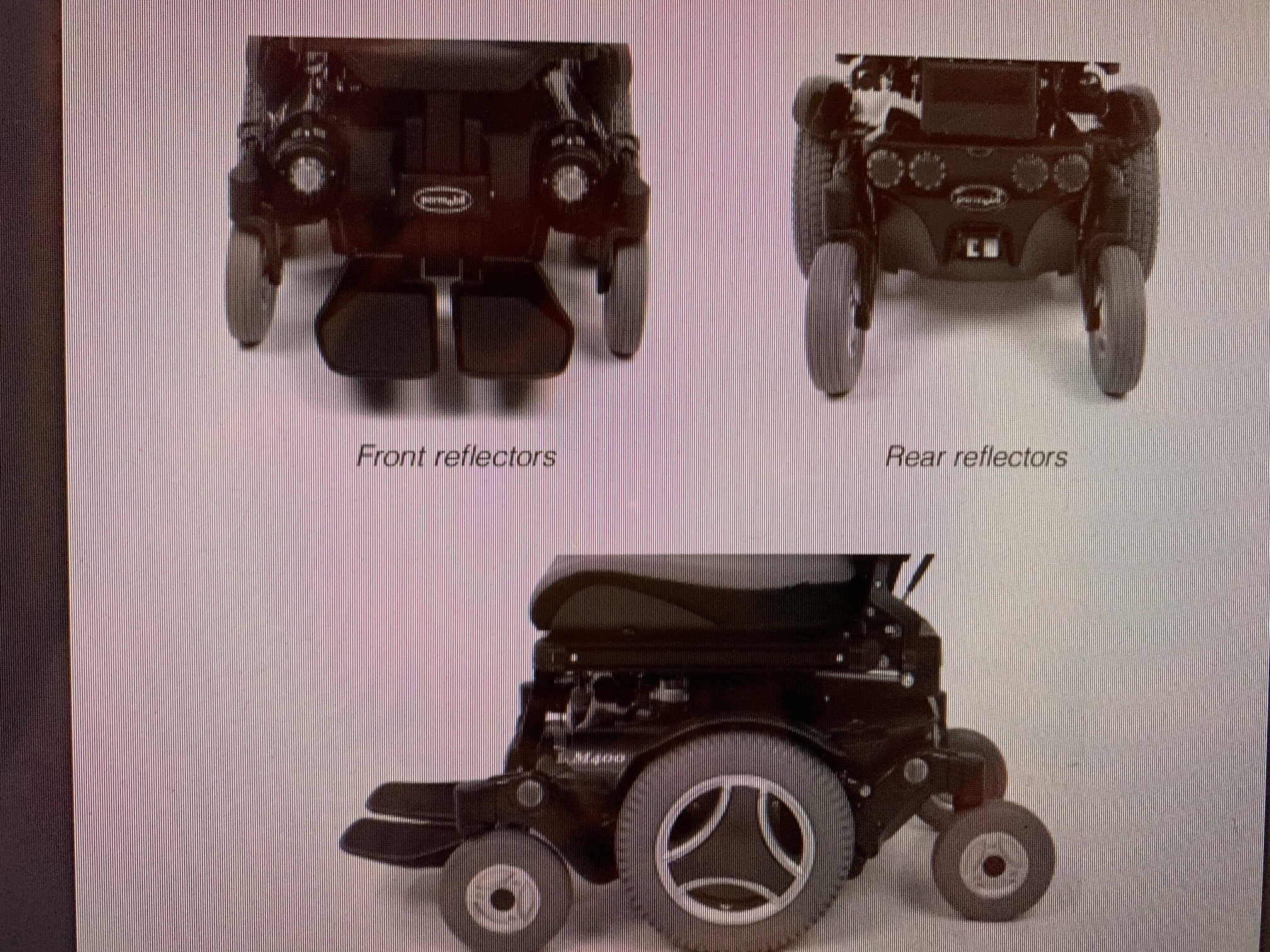

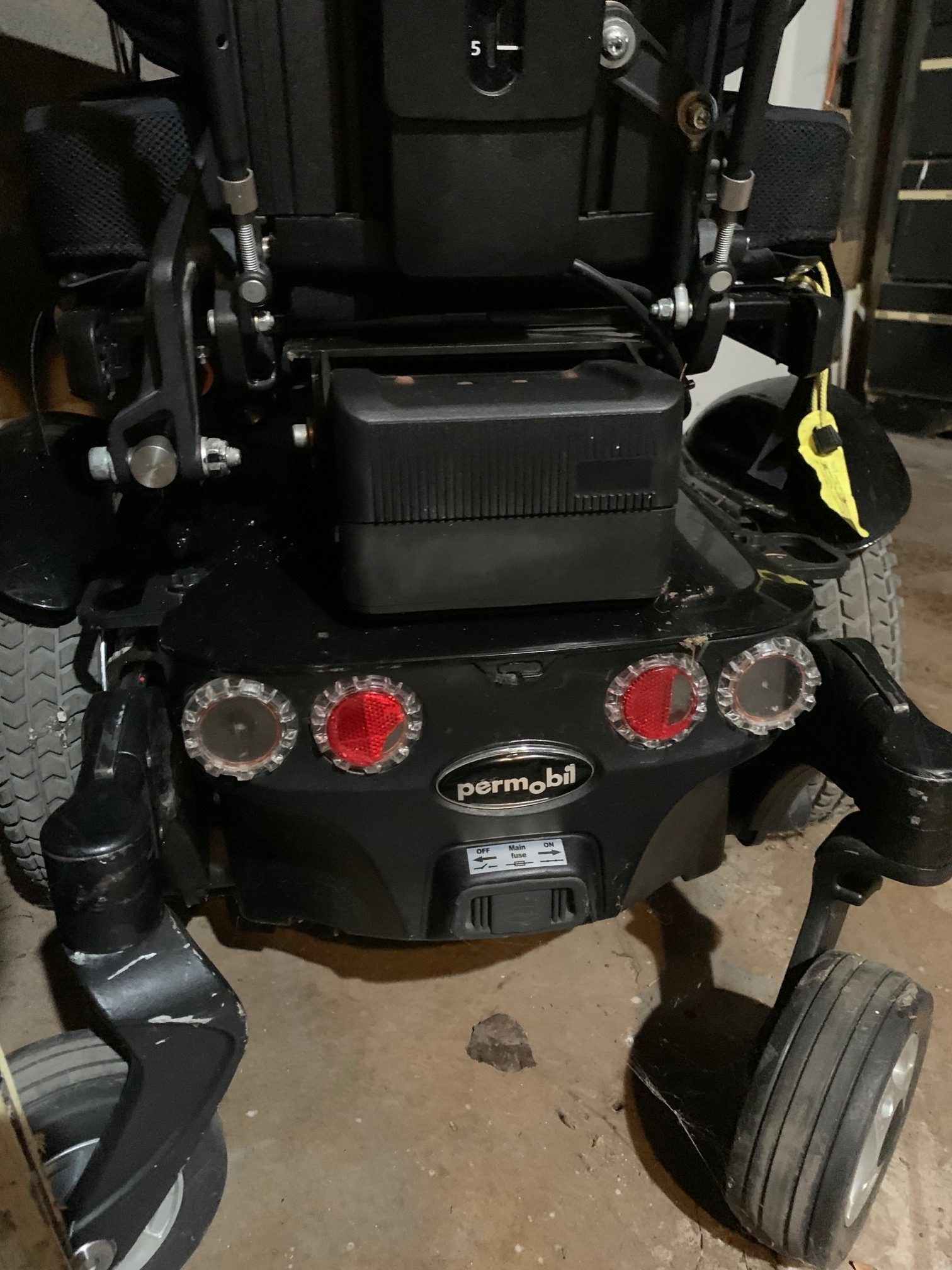

Lights and reflectors
The wheelchair is equipped with reflectors on the front, rear and sides. Front/
rear lights and turn indicators are optional.

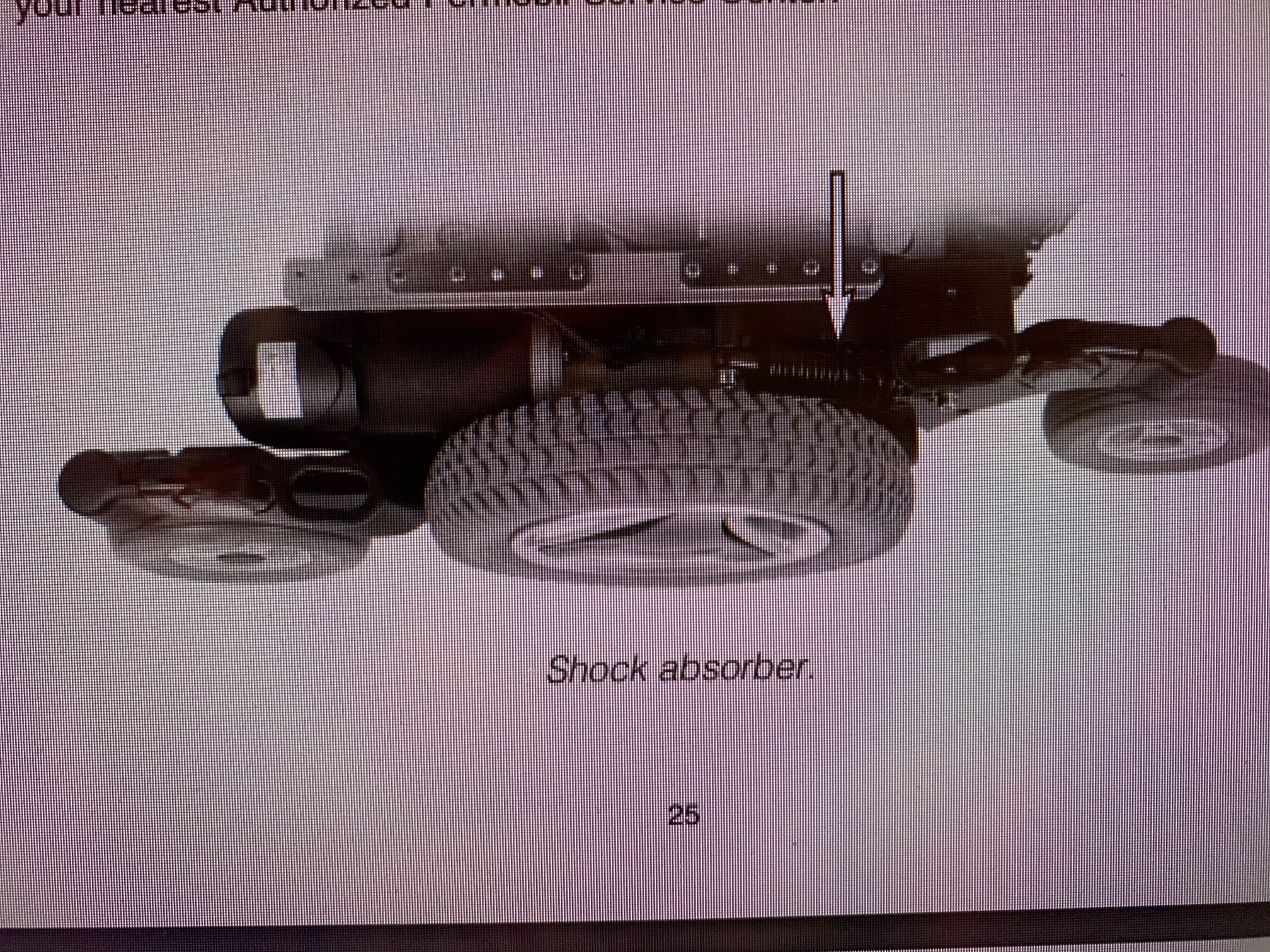

Shock absorber
The wheelchair is equipped with four shock absorbers.
Adjustment
Adjustment should to be performed by personnel who are well-acquainted with
the design and functionality of the M300. When adjustment is needed, contact
your nearest Authorized Permobil Service Center.
Driving
The Permobil M300 is equipped with a drive package for each drive wheel.
The drive package consists of an electric motor with a drive gear and magnetic
wheel lock.
